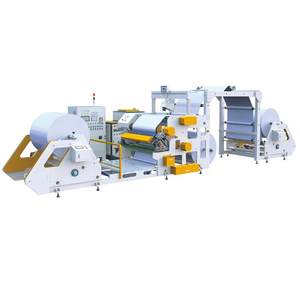

The Hot Melt Coating Machine Automatic Stable For Adhesive (Model: JYT-H) is a versatile and reliable solution for adhesive coating applications. Manufactured by Ruian City Jiayuan Machinery Co., Ltd., this machine is designed to deliver consistent and precise coating results.
With a coating width range of 400-2000mm, this machine can handle various material sizes. It offers a coating weight of 10-200g/m² and a coating speed of 50-100m/min, ensuring efficient production.
The machine features a 1000mm diameter unwind and rewind, accommodating large rolls of material. It also includes two sets of automatic correction systems to maintain accurate coating alignment.
Powered by a 38-60kW motor and operating on a 380v±15% 50Hz power supply, this machine delivers reliable performance. It requires a 220V voltage and a 10A current.
The Hot Melt Coating Machine Automatic Stable For Adhesive is suitable for producing a wide range of self-adhesive products, including label paper, double-sided tapes, foam tapes, cloth-based tapes, kraft paper tapes, masking tapes, and fiber tapes. It can also laminate various materials, such as non-woven fabrics, filter materials, medical materials, and labels.
Ruian City Jiayuan Machinery Co., Ltd. offers a one-year after-sales service and can customize the machine parameters to meet specific customer requirements.
| Parameter | Value |
|---|---|
| Product Type | Hot Melt Coating Machine |
| Model | JYT-H |
| Application | Adhesive Bonding |
| Customization | Supported |
| Coating Width | 400-2000mm |
| Coating Weight | 10-200g/m² |
| Coating Speed | 50-100m/min |
| Unwind Diameter | 1000mm |
| Rewind Diameter | 1000mm |
| Correction System | 2 sets |
| Length | 8500mm |
| Height | 2400mm |
| Power | 38-60kW |
| Power Supply | 380v±15% 50Hz |
| Voltage | 220V |
| Current | 10A |
| After-sales Service | 1 year |
| Customization | Parameters can be adjusted based on specific customer requirements |
Intelligent temperature control system with independent multi-zone settings for precise heat management
Accurate coating with a uniformity error of ±2%, ensuring consistent application across materials
Adjustable speed settings ranging from 10-80m/min, accommodating various production requirements
Energy-efficient design featuring a rapid preheating system, minimizing power consumption
Multiple safety interlock devices installed for enhanced operator protection and machine safety
Versatile applications across industries, including packaging (double-sided tape), construction (insulation composite), medical (adhesive tape), electronics (insulation processing), and automotive (vibration-damping material production)
Reliable and cost-effective hot melt coating machine solutions offered by a leading Chinese manufacturer and supplier
Dedicated to providing the most suitable and dependable machines, along with exceptional service and technical support for hot melt coating applications
When you choose Ruian City Jiayuan Machinery Co., Ltd., you gain access to a world-class hot melt coating machine manufacturer. We are your partner in developing cutting-edge solutions for your adhesive applications, from label tapes to automotive decorations and medical consumables.
Our commitment to quality is unwavering. With advanced management practices, cutting-edge technology, and top-notch equipment, we deliver coating machines that exceed your expectations in terms of performance and durability.
From South Africa to Pakistan, Indonesia to Thailand, our products have made their mark in various countries. By partnering with us, you can expand your business to new markets and tap into the global demand for high-quality adhesive solutions.
We believe in empowering your team to achieve success. That's why we provide comprehensive technical operation training for our machines. Our experts will work closely with your staff to ensure they have the skills and knowledge needed to optimize your coating processes.
Q1: What sets your hot melt coating machines apart from competitors?
A1: Our machines offer precise coating, intelligent temperature control, and energy-efficient design for optimal performance.
Q2: How do you ensure the quality of your coating machines?
A2: We use high-quality components and conduct rigorous testing to guarantee the reliability and durability of our machines.
Q3: What is your main business focus?
A3: We specialize in manufacturing and supplying a wide range of hot melt coating machines for various industries.
Q4: Do you offer customization options for your coating machines?
A4: Yes, we can customize machine parameters to meet your specific production requirements and preferences.
Q5: What industries can benefit from your hot melt coating machines?
A5: Our machines are suitable for packaging, construction, medical, electronics, automotive, and other industries requiring adhesive applications.
Q6: How do you handle shipping and delivery of your coating machines?
A6: We offer flexible shipping options, including air, sea, land transport and others, to ensure timely delivery worldwide.
